The Equipment

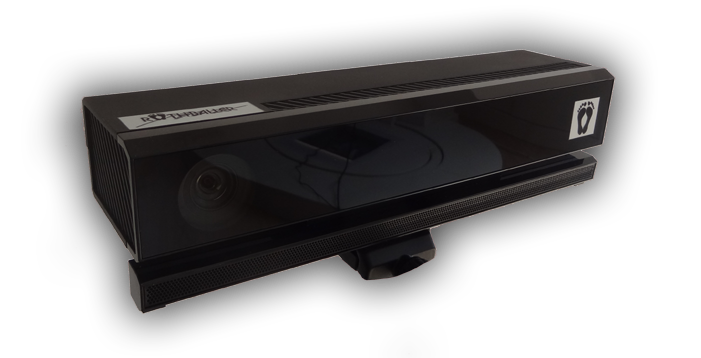

The 3D-Scanner:





The 3D scanner is supplied in a handy carrying case. The construction is very simple thanks to standard components. A calibration of the 3D scanner is not necessary.
Use the 3D scanner for the Back- and posture analysis "3D-Distance" with tripod or 3D-stand.

Technical Details und conditions:
System requirements to use the 3D scanner:

using with: 3D-Distance
Operating system Windows 8 or Windows 8.1 32 Bit/64 Bit
CPU Intel Core i5
graphics Card Min. 512 MB
RAM Min. 4 GB
Ports 1 x USB 2.0 f. 3D-Scanner
1 x USB 2.0 f. Hardlock
Software version Version 2015 or higher


Technical Details:
Dimension (Scanner without tripod): w/h/d 25,5 cm x 6,5 cm x 8,5 cm
Range: 0,8 m – 1,5 m
Infrared Deep-Sensor (no laser)
power consumption: 100 - 240 V; ~0,3 A; 47 - 63 Hz
tripod
3D-stand
